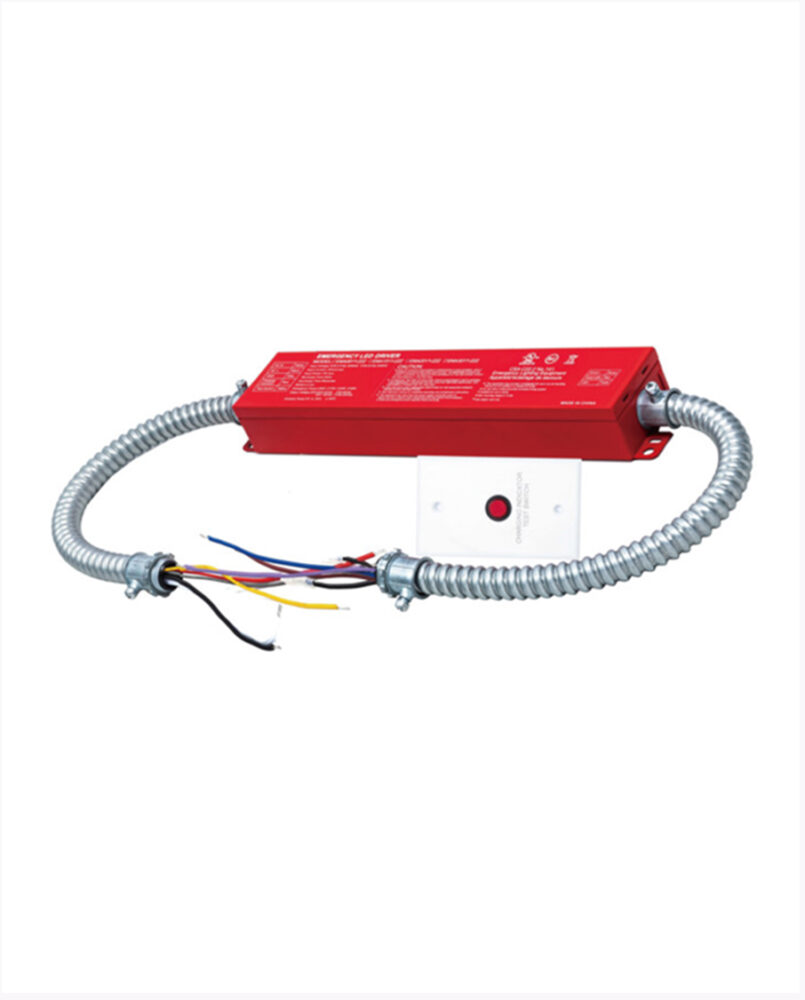

CL-BAT-BACKUP 25W LED Battery Back Up (Low Voltage connection)




Compatible with LED fixtures and used externally.

Cyber Tech Models:

CL40TF22/CW – 40Watt 2X2 LED Troffer Fixture

CL45TF24/CW – 45Watt 2X4 LED Troffer Fixture

CL36IDTF22/840 – 36Watt 2X2 LED Indirect Troffer Fixture

CL50IDTF24/CW – 50Watt 2X2 LED Indirect Troffer Fixture

CL40P22-D/CW – 40Watt 2X2 LED Panel Fixture 4000K

CL40P22-D/DL – 40Watt 2X2 LED Panel Fixture 5000K

CL50P24/CW – 50Watt 2X4 LED Panel Fixture 4000K

CL50P24/DL – 50Watt 2X4 LED Panel Fixture 5000K

Description

25W Battery Back up,  One unit fully contained Battery & Emergency Driver for, LED Fixtures using Low voltage Led’s.

Size: 2-1/4″W x 2-1/4″H x 8-3/4″L. 90 Minutes operation time,Lithium Battery,  Adjustable output current.  UL Listed allows for  factory or  field installation.

Input voltage 120-277V AC.

Output voltage 11-56V DC.

Output Operates LED Chips at 25W.

Output Current Adjustable 100-1050mA.

[PDF Spec Sheet]
